Product showcase: portable heaters

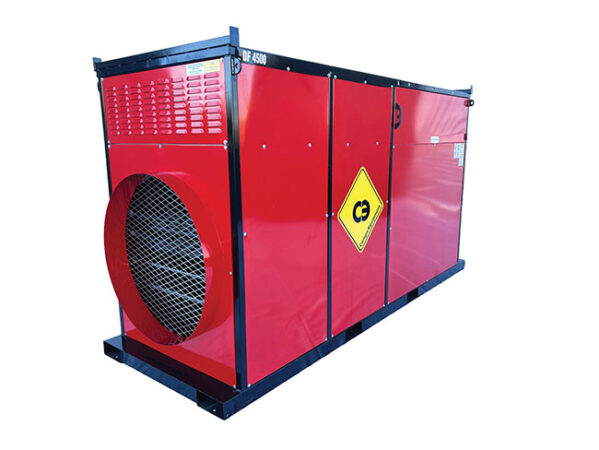

Campo Equipment DF4500 Make-Up Air Heater

CampoEquipment.com

Campo Equipment DF4500 Make-Up Air Heater

Campo Equipment says its DF4500 Make-Up air heater is powerful, efficient and built for the demands of the rental market.

The unit delivers up to 4.5 million BTUs and provides a maximum heated air output of 25,000 CFM.

Campo Equipment notes at the heart of the DF4500 is the company’s innovative ‘Fan First’ design, which keeps heat away from critical components. This eliminates the need for drive belts, pulleys and bearings. According to Campo Equipment, this forward-thinking approach reduces premature failures, lowers maintenance costs and keeps rental customers satisfied.

The DF4500 is powered by liquid propane or natural gas and features a wide scope modulating burner system ranging from 742,000 to 4.5 million BTUs. As a result, the customer can significantly reduce fuel costs as the unit can maintain target temperatures efficiently by burning only the fuel required to satisfy the remote thermostat.

Built for real-world jobsite flexibility, the DF4500 includes a dual voltage selector switch (220V/480V) and dual power hookups (Cam-Loks and 50A twist-lock), which are all conveniently housed behind a tamper-proof access door. These standard features provide technicians with installation options that simplify setup on virtually any jobsite.

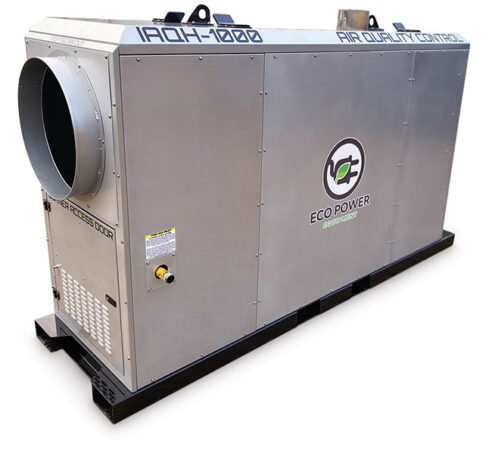

Eco Power Equipment’s IAQH-1000 indirect fired heater

ecopowerequip.com
With a maximum output of 800,000 BTUs, weighing in at nearly 2,400 pounds and maximum recommended ducting of 200 feet, Eco Power Equipment’s IAQH-1000 indirect fired heater is designed for use on large sites. While the unit can be used for a variety of commercial and industrial projects, it can also meet a diverse range of temporary heating needs, including in hospitals, schools and events.

The company states the IAQH-1000’s advanced modulating burner technology adapts to ambient needs, enhancing efficiency and ensuring dependable performance. It’s designed to switch between natural gas and propane, allowing fuel flexibility and lower operational costs.

Despite its large size, the IAQH-1000 has a portable design with fork pockets in both directions and two-point lifting system. Units are also stackable two-high for optimised off-season storage.

Access for maintenance and operations is simple, while a high-resolution controller monitors all aspects of heater operation. The unit’s PID Control Robust algorithm for temperature and fan control reduces fuel consumption and protects heater exchange.

As well, its stainless steel components and weatherproof enclosure provide long-lasting performance and reliability in difficult conditions.

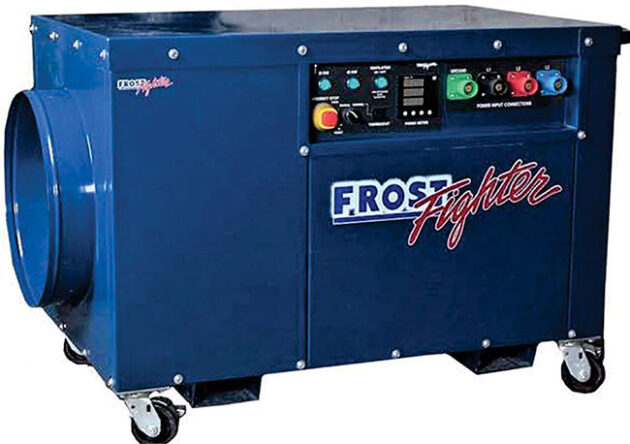

Frost Fighter E154QR and E156QR electric heaters

 frost-fighter.com
Frost Fighter E154QR and E156QR 150KW electric heaters’ design and construction ensure dependable performance, long service life and minimal maintenance. It’s high-efficient backward inclined aluminum fan delivers high airflows and static pressures with quiet operation. Meanwhile, its high-quality offset element arrays are designed for commercial use, supplying heat evenly and efficiently. The enclosed tubular element design provides superior durability, maximum safety and is suitable for contaminated atmospheres.

Operating between a 50 KW and 150 KW heat setting, the unit delivers a heat output between 171,000 to 512,000 BTUs an hour with airflow of 5,600 to 8,000 CFM.

It has a maximum outlet ducting of 50 feet for high temperature ducting and maximum inlet ducting of 25 feet for close pitch ducting.

The 512-pound unit comes with fork pockets and HD locking casters for easy transport.

The unit’s PLC control and VFD Inverter system provides variable airflows for maximum heating efficiency and control. The PLC control also offers visual operational status information for reliable operation and simplified troubleshooting.

There is no guessing if the power supply is adequate or correct as a digital power metre displays voltage or current of all three inputs.

The electric heater uses the industry standard 400 AMP colour-coded cam-lock power connectors to provide convenient and safe power connection anywhere with no hard wiring required.

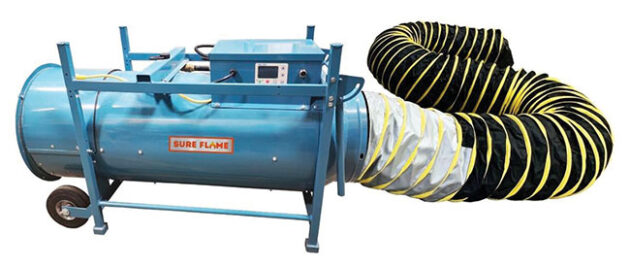

Sure Flame SE410

sureflame.ca
Sure Flame’s new SE410 heater is a class of its own. Approved for both indoor and outdoor use, the hybrid, enclosed flame heater operates between 250,000 and 400,000 BTUs and is ductable up to 75 feet. It has a heat rise of 95 degrees Celsius and a maximum discharge temperature of 115 C.

Worker safety is a top priority and the unit and ensures no measurable carbon dioxide is generated. It features a combustion monitoring system that self-adjusts for proper oxygen levels.

The SE410 heater is 99 per cent efficient while its fan is rated at 4,500 CFM. It has a low amperage draw of only 9.6 amps and operates on either propane or natural gas.

The unit’s 250-pound weight, fold-away handles and wheels make it easy to move. As well, it’s stackable design is ideal for storage or transportation as multiple units can fit in the back of a pickup truck.

The LED control panel’s easy-to-use diagnostic and status screen simplifies troubleshooting, allowing for faster diagnosis and less downtime for rental customers.

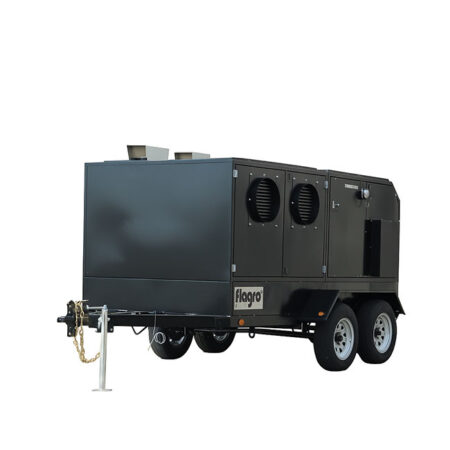

Flagro FVO-1100TR and FVO-400RCBT

flagro.ca
Flagro’s FVO-1100TR heater trailer contains two FVO-400RC heaters with recirculation, each delivering 390,000 BTUs and 1 H.P./4000 CFM. The trailer is equipped with four-by-12-inch or two-by-16-inch duct outlets and two-by-16-inch inlets, as well as a Kubota or Yanmar 8 KW/Stamford Newage combo genset liquid cooled diesel engine. It’s 300 USWG TC approved fuel tank with fuel containment provides 44 hours of run time before refueling.

The unit’s solid steel welded channel frame and floor is outfitted with emergency brakes and lights, CSA and ESA approved.

Also available is the three-in-one trailer, which offers heat, lighting and power generation. It features one FVO-400RC (390,000 BTUs) heater with recirculation, one 15-amp GFI service outlet and 15-foot two-stage mast with four 1.8-amp LED lights, providing more than 100 hours of run time. Meanwhile, FVO-400RCBT is a 390,000 BTU indirect fired oil heater with a recirculating hood and 118 USWG fuel tank. It has 44 hours of run time.

It is built with Riello burner technology, including nozzle pre-heater for cold weather start up and updated low temperature fuel pump. It’s 1 H.P. /4000 CFM with a powerful backward incline blower provides ultra-quiet operation and low amperage. The skid-based unit is ductable up to 150 feet, and has two by 12-inch or one by 16-inch outlet and one 16-inch inlet.

Along with competitive pricing, Flagro notes its heaters are backed by strong technical support, a good warranty program, and quick and consistent turnaround for parts thereby providing less downtime and a great ROI over the lifetime of the unit.

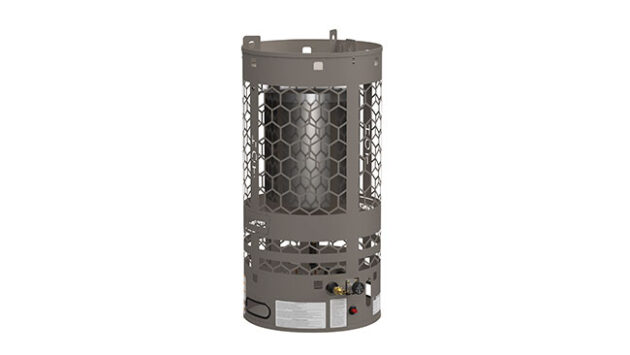

Sun Blast SR 125

lbwhite.com
The latest addition to L.B. White’s lineup is the Sun Blast SR 125. The light and easy to carry radiant heater provides a “simplified” heat and should be considered for work areas with ample ventilation, as it is direct fired. It’s a great option without the complexity, providing heat for not only you but also the materials in your workspace.

The Sun Blast SR 125 innovative emitter casts 125,000 BTUs in a 360-degree pattern, in both natural gas or liquid propane. No electricity is needed as there is no fan or electrical parts. A simple rotary knob varies the heat and a one-button ignitor brings it to life. While easy to use, it still incorporates safety features like a tip over switch.

The SR 125 can be stacked while not in use. There are also hanging eyes if the user wishes to elevate based on the application.

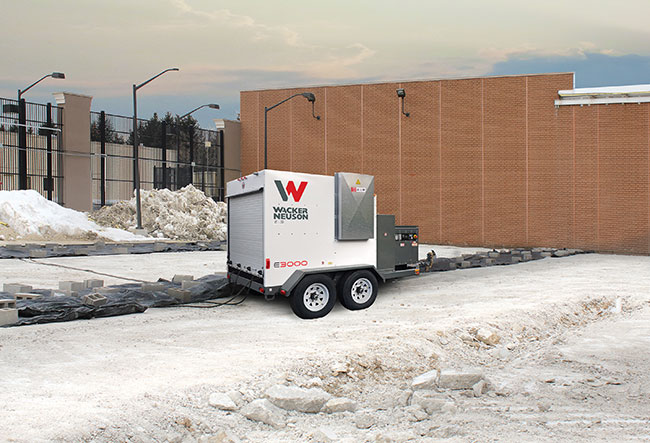

Wacker Neuson E3000 Heater with 6 kW Generator

wackerneuson.com
Engineered for reliable performance and trouble-free setups, the new Wacker Neuson E3000 heater with 6 kW generator features a standard 1,000-hour service interval and delivers up to 81 hours of continuous run time.

Ideal for cost-effectively thawing and maintaining soil temperature during cold weather construction, the E3000 has positive displacement pumps that provide steady flow and consistent heat delivery for thawing and curing up to 6,000 square feet with just two hose zones. The unique pump design of the heater allows for vertical flow of up to 250 feet, which is ideal for elevated bridge deck applications. Two pumps (one per loop) mean delivery of maximum BTUs per hour and also provide emergency back-up flow, to ensure heating in critical applications such as commercial concrete preparation and curing. With 3,000 feet of hose, split into just two continuous loops, the E3000 allows for single person set-up and placement.

Simplified controls make operation of the generator easy and improved service access helps reduce downtime and costs. The genset top opens completely, providing easy access to the oil filter, Kohler engine and other components.
