Pipeline Inspection Camera System enables users to record video with mobile devices
By Electric Eel
March 28, 2018 - Electric Eel eCAM Ace WiFi Pipeline Inspection Camera System enables users to record video with their mobile device.
By Electric Eel
The WiFi transmitter sends a wireless signal to almost any handheld device. Then by using the custom downloaded APP the user can see and record video. Once a video is recorded, the user can share it via the internet or download it to a computer. The eCAM Ace WiFi can be used to inspect pipelines ranging from 3″-10″. Powered by a 120v AC Supply or optional rechargeable battery pack.

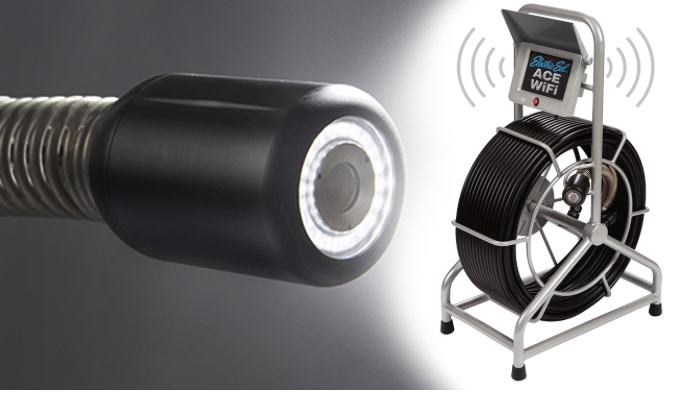

Rugged stainless steel housed 1.68” dia. color camera for inspecting 3″ to 10” lines. Sapphire lens with 20 LED light ring and high-resolution CCD element. Flexible camera spring designed to navigate 3” P-traps. Auto iris adjusts lighting automatically. Impact-resistant polycarbonate light ring cover. Industry standard 512HZ sonde. 5.4” LCD monitor with AR film for optimal viewing in sunlight encased in an anodized aluminum housing mounted to the reel. Protective acrylic, anti-glare monitor shield. Video output jack for recording option. Rugged and portable powder-coated steel frame. Standard with 200 ft. of Braided Fiberglass Premium 1/2″ diameter push rod. Secure-locking reel brake. Heavy-duty screen cover closes to protect the monitor when in transit or storage, flips up as a sun shield and can be retrofitted to existing units.
Electric Eel Mfg., based in Springfield, Ohio since 1939, produces a full line of drain and sewer cleaning machines including sectional units, drum machines, and a full line of pipeline inspection systems.
